RF Industries - TNC Male Clamp-RG8X,LMR24
$4.12

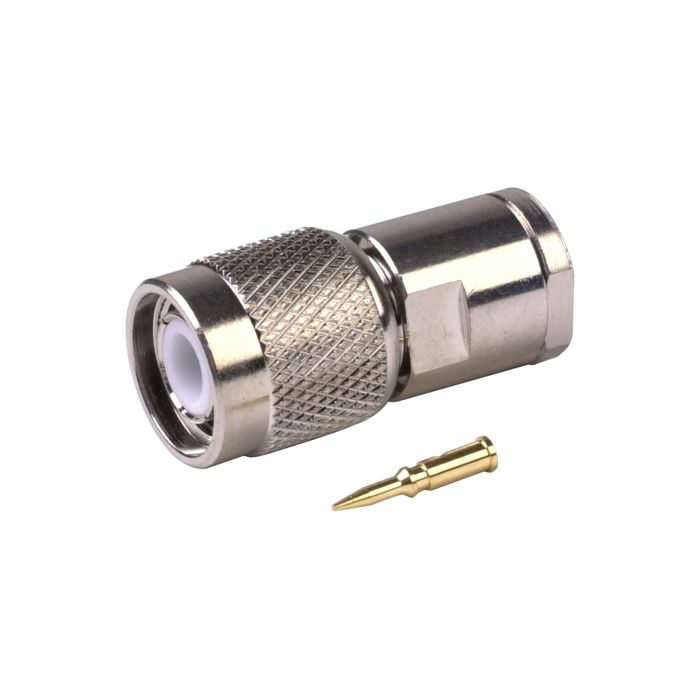

RF INDUSTRIES TNC male connector for RG8X and Times LMR240 cables. Teflon dielectric. Nickle plated body, silver pin. Solder center pin, clamp on braid.
TNC connectors are of miniature size like the BNC connector but feature a threaded coupling nut for applications requiring performance through 7 GHz. Chosen for their durability and reliability, TNC connectors are widely used in the cellular / mobile communications industry. Sex TNC Male Install 60981(1),88701(2) Material (Body) Nickel Material (Insulation) Teflon/TPX Connection (Body) Clamp Connector Type TNC Strip Jacket to End 0.375 Strip Insulation to End 0.125 For Cable RG8X, Times LMR240 Impedance (Ohms) 50 Ohms Cable Code X Material (Pin) Gold Frequency Range 0-3 GHz Connection (Pin) Crimp (.068) Max Voltage/Pwr 500 Vrms Strip Shield to End 0.125 Mfg. Warranty 1 Year
Unit of Measure | Per Each |
---|---|
Stock Info | Factory Stocked This item ships direct to you. Lead time with this Vendor is usually 1 business day but may vary based on demand. Condition |
Condition | New |
Shipping Type | Parcel Shipping |
SKU | RFT-1201-1X |
UOM | EACH |
Tech Support | DIY - MFG Documentation Only- Paid Local Install Support Available |
Manufacturer | RF Industries |
Brand | Brands Select |
