RF Industries - TNC Male Crimp-RG58,141
$3.05

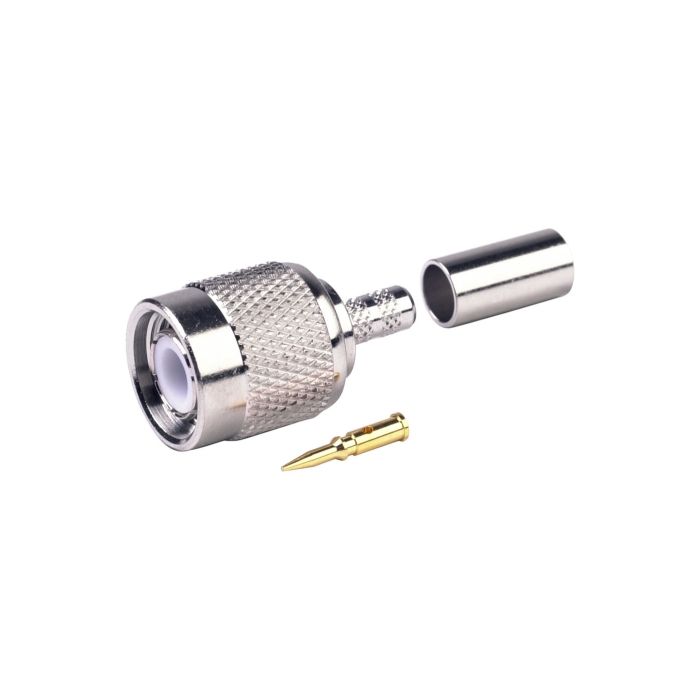

RF INDUSTRIES TNC male connector for RG58/U, RG58A/U, RG141 and Ultralink cable. Nickle plated body, gold pin. Crimp center pin, crimp on braid.
Pieces/UG | 3 |
For Cable | RG58/U,58A/U, Ultralink |
Install | 60981(1),88701(2) |
Material (Pin) | Gold |
Insulator Material | Delrin |
Frequency Range | 0-3 GHz |
Center Pin Type | Crimp |
RF Connector Body Style | Straight |
RF Impedance | 50 Ohms |
Connection (Note) | Captive pin |
Max Voltage/Pwr | 500 Vrms |
Strip Jacket to End | 0.625 |
Strip Shield to End | 0.300 |
Strip Insulation to End | 0.125 |
Mfg. Warranty | 5 Years |
TNC connectors are of miniature size like the BNC connector but feature a threaded coupling nut for applications requiring performance through 7 GHz. Chosen for their durability and reliability, TNC connectors are widely used in the cellular / mobile communications industry.
Unit of Measure | Per Each |
---|---|
Stock Info | Factory Stocked This item ships direct to you. Lead time with this Vendor is usually 1 business day but may vary based on demand. Condition |
Condition | New |
Shipping Type | Parcel Shipping |
SKU | RFT-1202-2 |
UOM | EACH |
Tech Support | DIY - MFG Documentation Only- Paid Local Install Support Available |
Manufacturer | RF Industries |
Brand | Brands Select |
