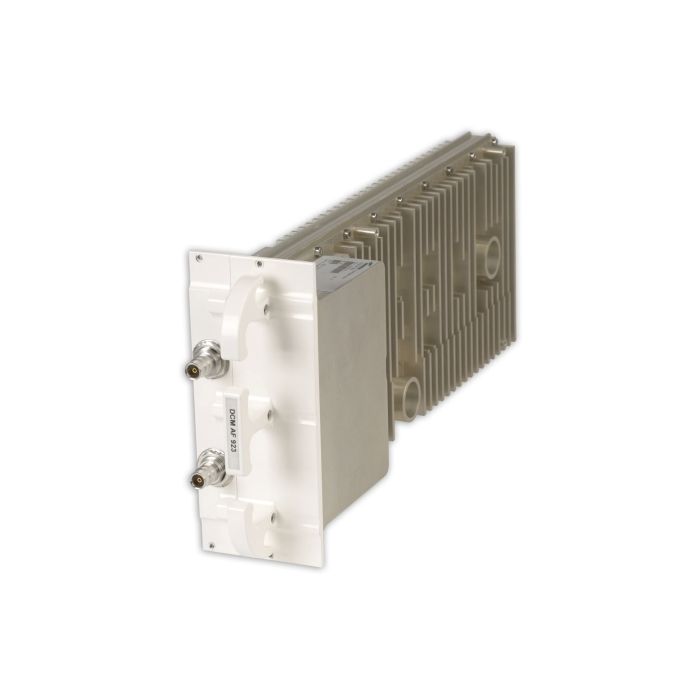

ANDREW an Amphenol company NODE A Cellular 0.5W Amplifier Module ANDREW an Amphenol company
$3,852.75
The Andrew 7577540-01 NODE A digital channel module is where the uplink and downlink signals are filtered and amplified. This amplifier module is designed for the 850 MHz cellular band (824 - 849 MHz / 869 - 894 MHz). The digital channel BDA module features 84 dB gain and 27dBm UL/30dBm DL composite power. Antenna port is N female connector type. The NODE A amplifier module easily slides into the subrack.WARNING. This is NOT a CONSUMER device. It is designed for installation by FCC LICENSEES and QUALIFIED INSTALLERS. You MUST have an FCC LICENSE or express consent of an FCC Licensee to operate this device. Unauthorized use may result in significant forfeiture penalties, including penalties in excess of $100,000 for each continuing violation.
The Node A digital channel modules are where the uplink and downlink signals are filtered and amplified. The modules are available in 0.5 watt and 5 watt versions. Choose the modules that meet your band requirements. A dummy module should be used to fill any un-used slots in the chassis. Frequency (MHz) 824-849/ 869-894 Gain (dB) 84 Composite Power (D/L) 30 Gain Control Manual and AGC Noise Figure (U/L, D/L) 4dB Size (L x W x H) 7" x 4" x 16" Power Requirements 110-240 VAC Mfg. Warranty 1 Year Tuning Method Field tunable Band One Cellular 850 Composite Power (U/L) 27dBm Gain Adjustment Range (dB +/-) 30 in 1dB steps Composite Output Power (U/L) 27dBm Connectors Ant ports: N Female; Combiner: QN Female Temperature Range -30 to +50 C Weight (lb) 7
| Condition | New |
|---|---|
| SKU | 7577540-01 |
| Manufacturer | CommScope |
| Brand | Brands Select |
