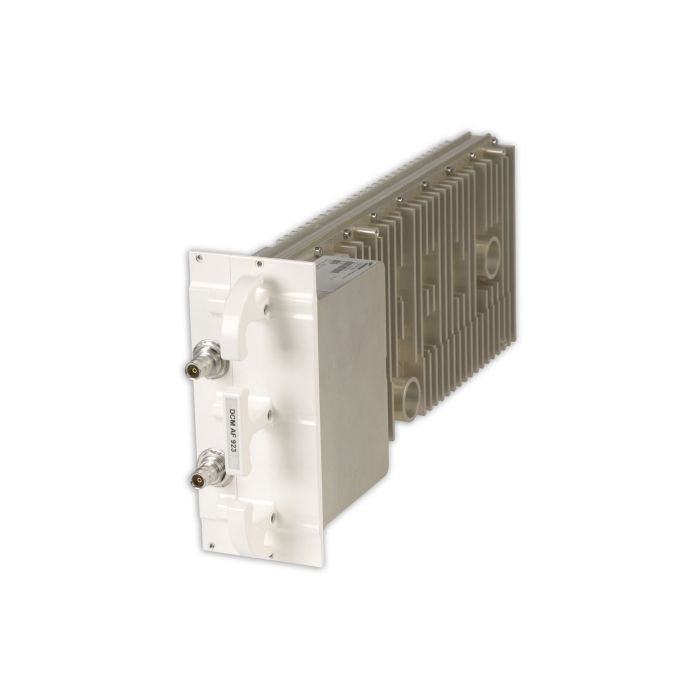

ANDREW an Amphenol company NODE A 700 LTE 0.5W Amplifier Module ANDREW an Amphenol company

The Node A digital channel modules are where the uplink and downlink signals are filtered and amplified. The modules are available in 0.5 watt and 5 watt versions. Choose the modules that meet your band requirements. A dummy module should be used to fill any un-used slots in the chassis. Frequency (MHz) UL: 698-710/ 776-787 DL: 728-740/ 746-757 Gain (dB) 84 Composite Power (D/L) 27 Gain Control Manual and AGC Noise Figure (U/L, D/L) 4dB Single/Dual Inputs Single Temperature Range -30 to +50 C Weight (lb) 7 Tuning Method Field tunable Band One 700 LTE Composite Power (U/L) 30dBm Gain Adjustment Range (dB +/-) 30 in 1dB steps Composite Output Power (U/L) 30dBm Connectors Ant ports: N Female; Combiner: QN Female Size (L x W x H) 7" x 4" x 16" Power Requirements 110-240 VAC Mfg. Warranty 1 Year
