Belden - Belden 9913RG8-Type Coax Cable

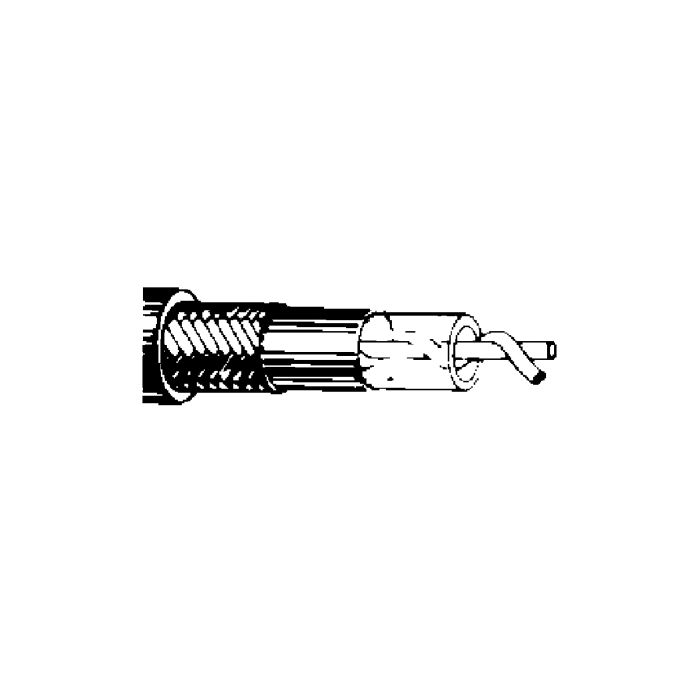

The Belden 9913 RG8/U coaxial cable (black) is low loss with an "air" dielectric. This 50 Ohm coax cable has a solid center conductor and a semi-solid polyethylene dielectric. A 100 percent shield coverage prevents loss.The braided coaxial cable offers similar performance compared to corrugated copper cables but provides higher flexibility and simplified connectorization. This RG8 cable requires 9913 specific connectors.The Belden RG8/U low loss coaxial cable with "air" dielectric is available in bulk and is priced per foot.
Availability: Direct Ship from Vendor
Low loss RG8 with an "air" dielectric. Low loss, braided coaxial cable offers similar performance compared to corrugated copper products but with higher flexibility and simplified connectorization. Can be used in almost any application where handling characteristics, improved shielding and low loss is required. Uses standard 9913 connectors. Reel Type D Ctr Cond .108 solid Nominal O.D. .405 Shield % 100% Nominal Capacitance (pF/ft) 24.6 Loss @ 100 MHz 1.3 Loss @ 900 MHz 4.2 Sold By per foot Strip Tool # 25123 or 493119 Cable Type 3/8" Insulation semi-solid Poly Nominal Core O.D. 0.285 VOP 84 Connectors For use with 9913 connectors Loss @ 50 MHz 0.9 dB Loss @ 400 MHz 2.7 Loss @ 1000 MHz 4.5 dB Impedance 50 Ohms Mfg. Warranty 1 Year
|Unit of Measure||Per Each|
|Stock Info|| Factory Stocked
This item ships direct to you. Lead time with this Vendor is usually 1 business day but may vary based on demand.
|Shipping Type||Parcel Shipping|
|Tech Support||DIY - MFG Documentation Only- Paid Local Install Support Available|
